MONTANA SPI - NEW 2007

NATURAL SONIC BALANCE AND ARTICULATION

The MONTANA SPI is developed and manufactured in the USA utilizing the finest components and materials available. The MONTANA SPI is capable of reproducing music with astonishing realism, resolution, dynamic impact, speed and neuance. Despite of its interior-friendly design and forgiving physical size, the MONTANA SPI is a true high-performance sound transducer. Due to the extremely cost-efficient distribution concept of HighEnd, the MONTANA SPI is a highly affordable entry into seductive musical realism, which is exactly what so many music lovers are seeking. Those who share our passion for music and realistic sound reproduction, should definately experience the MONTANA SPI.

The loudspeaker cabinet structure is the very fundament of any dynamic loudspeaker design. PBN Audio will never render to any compromise as far as build quality is concerned, acknowledging that less costly designs will inevitably lead to sonic and musical degradation. A rock solid base on which the drivers are mounted is a necessity in order to achieve the ultra-precise soundstage without distortion that MONTANA Loudspeakers are so highly acclaimed for. The MONTANA SPI makes no exception. Its exceptionally high resistance against vibrations and resonances effectively eliminates colourations that less advanced cabinet designs are associated with. The cabinet parts are precision cut using the latest cutting-edge CNC router technlogy. In-house cabinet production is by far the safest way to meet the highest quality standards.

For the mentiond reasons, the MONTANA SPI features a hexagonal cabinet structure with thick cabinet walls and extensive internal bracing. Internal standing waves are effectively dealed with. The tweeter and the mid range drivers are mounted in closely matched, separate internal chambers, so that the drivers become physically isolated from each other and from the energy produced by the bass drivers. Hence, no audible degradation will ever occur due to interaction between the drivers. This technique creates optimum conditions for the drivers. No cabinet parts have the same resonance frequency.

This non-compromise approach to cabinet design is demanding in terms of work and expenses. However, maximum precision and performance is the result.

The high-performance drivers are manufactured by the Norwegian manufacturer SEAS. SEAS is renowned as one of the world leading manufactureres of high-end audio loudspeaker drivers. Each driver is manufactured according to spesifications and tight tolerances provided by PBN Audio. No standard drivers are used.

The MONTANA SPI is equipped with 2 ea. 7" SEAS Custom bass drivers. These drivers offer tremendous speed, definition and attack, as well as more than reasonable bass extension. The MONTANA SPI will easily be percieved as a full-range loudspeaker by most audiophiles, providing the right fundament for reproducing a huge and realistic soundtstage.

2 ea. 4" SEAS Custom drivers reproduce the critical mid range frequency spectrum, where any sonic abberrations from realistic sound will easily be percieved by the human ear. Sonic characteristics have determined the choice of this particular driver, which features a unique glass-fiber composite material. This is a technically adapted variant of the same mid-range drivers utilized in the larger loudspeaker models EPS2 and XPS. The manucaturer has spared no expense choosing the optimum drivers for the MONTANA SPI. The low-mass membrane and the rigid motor structure ensures striking dynamics, neuances and natural clarity of voices and instruments, pleasantly percieved as in real life.

The 1" SEAS Custom mid-range driver was chosen for its outstanding resolution and dispersion characteristics, high efficiency end excellent transient capacity. The highest frequencies will always contribute to a credible perception of spaciousness, airiness and harmonic balance. The articulate way the MONTANA SPI reproduces the upper frequency register has a striking resemblance to music experienced in real life.

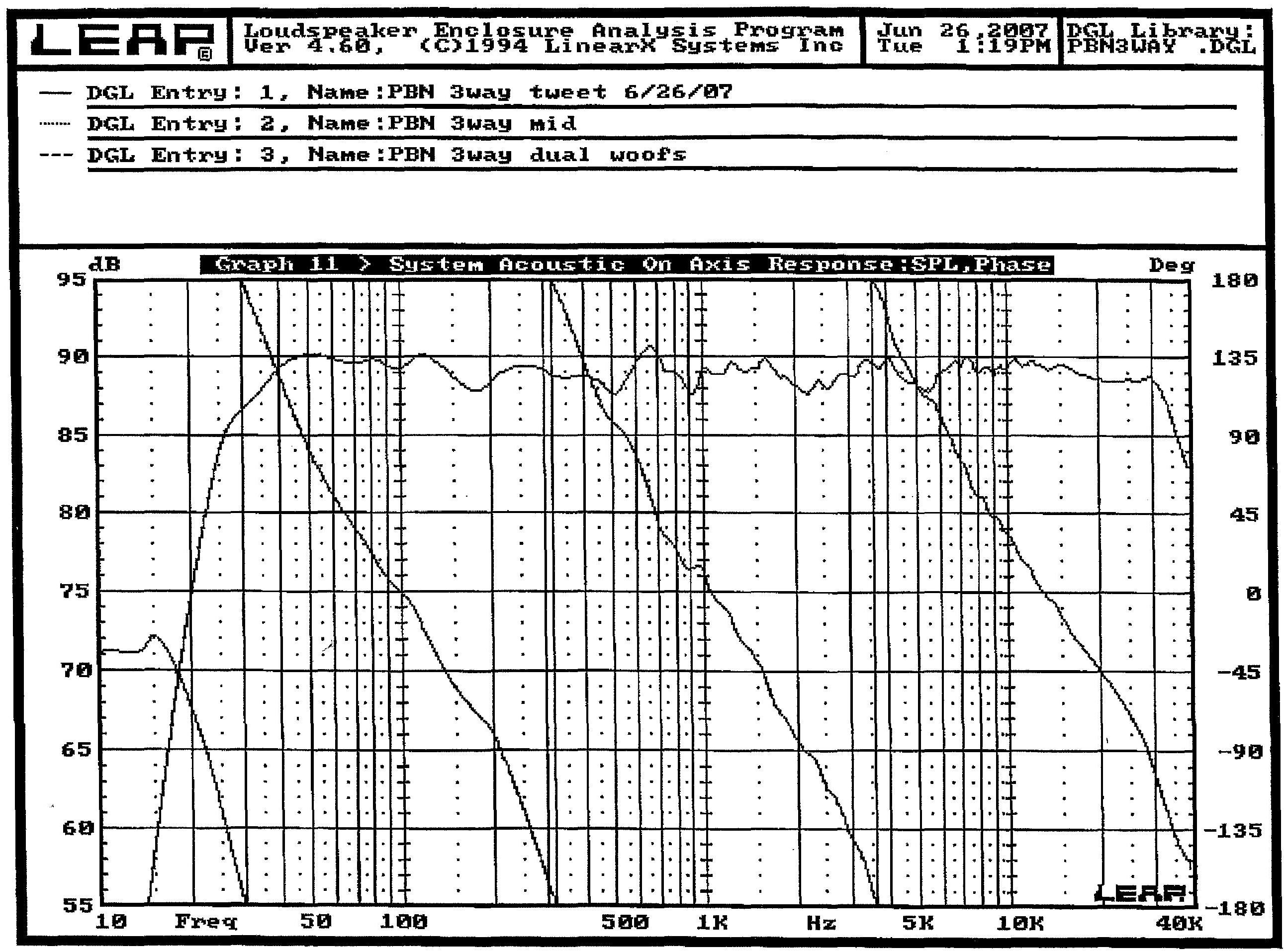

The 24 dB per octave cross-over section contains high-quality components only. The perfect transition between the frequency sections is a result of high competence and cutting-edge engineering. The MONTANA SPI truly reproduces an amazing sonic whole. The MONTANA SPI has an extremely linear frequency response throughout the whole frequency spectrum, all the way from an impressive 30 Hz to far above frequency levels percievable for the human ear, in which the frequency aberration is a vanishing +/- 1,5 dB. The phase integration between the drivers is simply perfect. This level of precision is quite unique at the respective price level and is rarely seen even in the ultra high-end price segment. Please study the frequency measurements for the MONTANA SPI.

Download Frequency Plot

The MONTANA SPI is nothing but an extraordinarily precise, efficient, rapid and responsive high-end loudspeaker. That is why it will not only appeal to those who desire the distinct and utterly natural sound reproduction offered by the best solid state amplifier designs on the market, but will also be the perfect choice for those who love the pleasant and seductive sound of high-quality tube amplifiers.

The best approach to achieving desired musical satisfaction, is to purchase in an extremely transparent, precise and natural sounding loudspeaker and then feed the speaker with any sonic character that the associated electronics provides.

In the same instant you get to hear the MONTANA SPI you will realize that extraordinary attention to quality has been put into this high-perfomance loudspeaker. Precision, detail and musical fidelity are features that characterize the MONTANA SPI. The MONTANA SPI truly is an outstanding combination of advanced engineering and production methods, high-quality components and extreme attention to sonic features. Everything that can be done has been done to build an affordable loudspeaker that presents the music in an untouched manner.

Bi-wiring is strongly recommended in order to bring out the full potensial of this high-end loudspeaker. Interference between the cross-over sections will then be reduced to an absolute minimum.

Specifications:
1 - 1" tweeter
1 - 4" midrange
2 - 7" woofers
Dimensions: 41" x 13" x 14"
Frequency Range: 30 Hz to 30 kHz +/- 1.5 db
Efficiency: 89 dB/2.83V@1M
Crossover points: 300 Hz and 3500 Hz
Crossover roll of: 24dB/Octave Acoustical
Nominal Impedance: 5 Ohms
Finish: Choose from dozens of exclusive real wood veneers or piano laquer in any colour
